Raymond Roller Plating Copper Plating Equipment Production Line - High-Volume Copper Electroplating Solutions

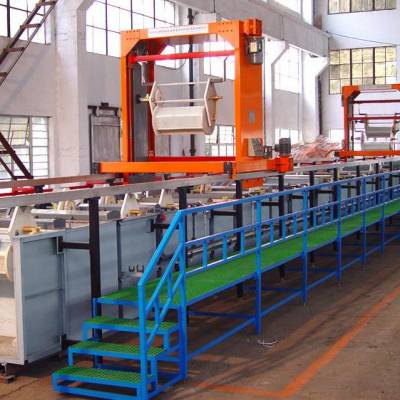

Raymond Roller Plating Copper Plating Equipment Production Line

High-Volume Copper Electroplating Solutions · Superior Electrical Conductivity · Exceptional Coating Uniformity

Product Introduction

The Raymond Roller Plating Copper Plating Equipment Production Line represents a cutting-edge solution for high-volume, efficient copper electroplating of small to medium-sized components. This advanced barrel plating system is specifically designed to deliver uniform, high-quality copper deposits on a wide range of substrates, making it indispensable for industries such as electronics, automotive, hardware manufacturing, and decorative applications. Copper plating is highly valued for its excellent electrical conductivity, thermal properties, corrosion resistance, and aesthetic appeal, serving both functional and decorative purposes across diverse applications.

At Raymond, we understand the critical importance of consistent, high-quality copper plating in modern manufacturing. Our roller plating lines are meticulously engineered to optimize efficiency, minimize chemical consumption, and ensure superior coating uniformity. Featuring advanced automation, precise process control, and robust material handling systems, our lines deliver exceptional performance while reducing operational costs and environmental impact. Drawing on global best practices from Europe, USA, Japan, and Korea, our copper plating solutions are designed to meet the most stringent quality standards and regulatory requirements. Partner with Raymond for a reliable, high-performance copper plating solution that enhances your product quality and drives manufacturing excellence.

Core Advantages of Raymond Roller Plating Copper Equipment Production Lines
Superior Electrical Conductivity: Copper plating provides excellent electrical conductivity, making it ideal for electronic components, connectors, and circuit boards where reliable electrical performance is critical.
Exceptional Coating Uniformity: The roller plating process ensures consistent copper deposition across all surfaces of small parts, including complex geometries and recessed areas, eliminating issues like uneven thickness or skip plating.
High Production Efficiency: Designed for continuous, high-volume operation, our lines feature optimized barrel rotation, automated material handling, and efficient process sequencing, maximizing throughput and productivity.
Excellent Adhesion & Durability: Our meticulously controlled pre-treatment and plating processes ensure strong adhesion of the copper layer to various substrates, providing long-lasting performance and reliability.
Versatile Substrate Compatibility: Capable of plating on diverse materials including steel, brass, zinc alloys, and other conductive substrates, expanding the range of applications and market opportunities.
Cost-Effective Operation: Optimized chemical utilization, energy-efficient designs, and automated process control minimize operational costs while maintaining high quality standards.
Environmental Compliance: Integrated waste treatment systems, chemical recovery options, and closed-loop rinsing ensure compliance with environmental regulations and promote sustainable manufacturing practices.
Foundation for Multi-Layer Plating: Copper often serves as an essential base layer for subsequent plating processes (e.g., nickel, chrome, gold), enabling complex multi-layer metallization systems.

Process Flow

The Raymond Roller Plating Copper Equipment Production Line follows a precise, multi-stage process to ensure uniform and high-quality copper deposition on small to medium-sized components.

Loading & Pre-treatment

Small parts are loaded into rotating barrels and undergo thorough cleaning, including degreasing and acid activation, to remove contaminants and prepare the surface for optimal copper adhesion.

Copper Electroplating

The loaded barrels are immersed in a precisely formulated copper sulfate electrolyte solution. A controlled DC current is applied while the barrels rotate continuously, ensuring uniform copper deposition on all part surfaces.

Multi-Stage Rinsing

After achieving the desired copper thickness, parts undergo multiple rinsing stages to remove residual plating solution and prevent contamination.

Drying & Unloading

Finally, parts are dried using hot air systems and then unloaded from the barrels, ready for inspection or further processing.

Technical Specifications

Raymond Roller Plating Copper Equipment Production Lines are engineered for superior performance, reliability, and adaptability, incorporating advanced features inspired by global industry leaders.

Technical Parameter	Specification Range
Production Line Type	Fully Automatic Roller/Barrel Copper Plating Line
Control System	PLC Control (e.g., Siemens, Mitsubishi), HMI Touchscreen, SCADA Integration
Plating Process	Copper Sulfate Electroplating
Applicable Substrates	Steel, Brass, Zinc Alloys, Bronze, Other Conductive Materials
Part Size Range	1-50mm (typical for roller plating applications)
Coating Thickness	5-50 µm (adjustable based on application requirements)
Production Capacity	50-500 kg/hour (depending on part size and coating thickness)
Barrel Material	Polypropylene (PP), Titanium-lined, or Stainless Steel
Tank Material	PP, PVC, FRP-lined Steel, Stainless Steel (316L)
Temperature Control	±1°C Precision for plating baths
Current Density	1-6 A/dm² (optimized for barrel plating)
Automation Level	Fully Automated Loading/Unloading, Barrel Rotation Control, Chemical Dosing
Environmental Controls	Fume Extraction, Wastewater Treatment, Copper Recovery Systems
Safety Features	Emergency Stop, Overload Protection, Safety Interlocks, Ventilation Systems

Solving Customer Pain Points

The Raymond Roller Plating Copper Equipment Production Line is designed to effectively address critical challenges faced by manufacturers requiring high-quality, uniform copper plating on small to medium-sized components.

Challenge: Achieving Uniform Coating on Small, Complex Parts

Our Solution: The continuous barrel rotation and optimized current distribution ensure uniform copper deposition on all surfaces, including recessed areas and complex geometries, eliminating issues like uneven plating or bare spots.

Challenge: High Production Volume Requirements

Our Solution: Our high-capacity barrel plating systems are designed for continuous operation, enabling the processing of large quantities of small parts efficiently, meeting demanding production schedules.

Challenge: Maintaining Consistent Quality Across Batches

Our Solution: Advanced automated process control systems maintain optimal plating parameters, ensuring consistent copper quality and thickness across all production batches, reducing variability and rework.

Challenge: High Chemical Consumption & Operating Costs

Our Solution: Optimized chemical utilization, drag-out recovery systems, and energy-efficient designs minimize operational costs while maintaining high quality standards, improving overall profitability.

Challenge: Environmental Compliance & Waste Management

Our Solution: Integrated wastewater treatment and copper recovery systems ensure compliance with environmental regulations while reducing waste disposal costs and promoting sustainable operations.

Challenge: Need for Reliable Base Layer for Subsequent Plating

Our Solution: The high-quality copper layer provides an excellent foundation for subsequent plating processes, ensuring strong adhesion and optimal performance of multi-layer metallization systems.

Related Keywords: roller plating copper equipment, barrel copper plating line, copper electroplating equipment, high volume copper plating, small parts copper plating, electrical conductivity coating, copper sulfate plating, automated copper plating, Raymond copper plating, industrial copper finishing.

Roller plating copper plating equipment production line is a kind of production line specialized in copper plating process, which adopts roller plating technology to form a uniform copper plating layer on the surface of the workpiece by electrolysis. This kind of production line is widely used in many fields such as electronics, hardware, automobile and so on.

I. Basic composition of copper plating production line

Copper plating production line mainly consists of pre-treatment equipment, barrel plating tank, post-treatment equipment and auxiliary equipment. Pre-treatment equipment is used for cleaning and pre-treatment of the surface of the workpiece to ensure that the plating layer can be firmly attached; the barrel plating tank is the core part of the plating process, through the electrolytic effect on the surface of the workpiece to form a copper plating layer; post-treatment equipment is used for the plating layer for cleaning, drying and polishing and other treatments to improve the luster and corrosion resistance of the plating layer; auxiliary equipment, including power supplies, cooling systems, stirring systems, etc., to ensure that the entire plating process can be carried out, Auxiliary equipment includes power supply, cooling system, stirring system, etc., to ensure the smooth operation of the entire plating process.

II. Characteristics of Copper Coating Equipment Production Line for Barrel Coating

1. High efficiency: the barrel plating technology can realize the continuous plating of large quantities of workpieces, which greatly improves the production efficiency. 2. Uniformity: the barrel plating process can realize the continuous plating of large quantities of workpieces, greatly improving the production efficiency.

2. Uniformity: During the barrel plating process, the workpiece rolls in the barrel plating tank, which makes the plating layer cover the surface of the workpiece uniformly.

3. Environmental protection: modern barrel plating equipment is usually equipped with waste water treatment system, can effectively reduce the plating process of waste water and waste residue pollution of the environment.

4. High degree of automation: many copper plating equipment production lines have realized a high degree of automation, reducing manual operation, improving production stability and product quality.

Large scale production base

Lei Meng Equipment have a production base of 15000 square meters and multiple professional production lines including imported large processing centers,including equipment production lines for chrome plating, zinc plating, copper plating, nickel plating,silver plating, gold plating, plastic electroplating, hanging plating, rolling plating, push plating, spray coating, and pre-treatment.

Exquisite workmanship

Simple and flexible operation, stable operation,easy management,low mechanical failure rate, and high usage efficiency.The equipment adopts materials from well-known brands in Japan,Taiwan and China to ensure stable and durable quality.After on-site installation, the equipment is repeatedly tested to ensure stability and quality.

Master core technology

Engineers have been engaged in the electroplating industry for many years,continuously improving equipment quality and providing technical support.By increasing investment in technology and improving research and development capabilities, we now have advanced technology research and design capabilities in the industry

Lei Meng (Changzhou) Equipment Co. Ltd. is a large-scale equipment manufacturing enterprise.After more than ten years of rapid development, ithas two major production bases in Changzhou and Wuxi, as well as a technology research and development center with a total area of 15000 square meters. lt has multiple professional production lines, including imported large-scale machining centers.
