Transforming Plastics with Durable, Aesthetic, and Functional Metallic Finishes
Raymond Plastic Plating Equipment Production Line offers cutting-edge solutions for applying metallic finishes to plastic substrates, combining the lightweight and design flexibility of plastics with the aesthetic and functional properties of metals. Our advanced lines are engineered to deliver superior adhesion, uniform coating thickness, and exceptional durability, enabling manufacturers to produce high-quality plated plastic components for a wide range of industries, including automotive, consumer electronics, sanitary ware, and home appliances.
At Raymond, we understand the unique challenges of plating on plastics, from surface preparation to achieving consistent, defect-free finishes. Our production lines integrate state-of-the-art pre-treatment, activation, electroless plating, and electroplating technologies, ensuring optimal performance and efficiency. We provide customizable systems that meet stringent quality standards, reduce operational costs, and support sustainable manufacturing practices. Partner with Raymond to unlock new design possibilities and enhance the value of your plastic products with premium metallic finishes.
The Raymond Plastic Plating Equipment Production Line employs a meticulously controlled, multi-stage process to ensure optimal adhesion and a high-quality metallic finish on plastic substrates. Each step is critical for achieving the desired aesthetic and functional properties.
Plastic parts undergo thorough cleaning, degreasing, and etching to create a micro-roughened surface, essential for mechanical interlocking and chemical adhesion of subsequent layers. This step is crucial for achieving strong bond strength.
The etched plastic surface is activated with a catalyst (e.g., palladium-tin colloid) to make it receptive to electroless deposition. This step ensures the formation of a conductive layer for subsequent electroplating.
A thin, conductive layer of copper or nickel is chemically deposited onto the activated plastic surface without the use of external electricity. This layer provides the necessary conductivity for subsequent electroplating.
Once the plastic part is conductive, it undergoes electroplating in various baths (e.g., acid copper, bright nickel, chrome) to build up the desired metallic thickness, achieve specific aesthetic finishes, and enhance functional properties.
After electroplating, parts are thoroughly rinsed, dried, and may undergo additional post-treatment processes such as clear coating or polishing to enhance durability, corrosion resistance, and final appearance.
Our lines feature advanced etching solutions tailored for various plastic types, ensuring optimal surface preparation without compromising substrate integrity. We utilize high-performance electroless plating baths with superior stability and deposition rates, minimizing defects and maximizing efficiency. Integrated filtration, temperature control, and automated chemical dosing systems maintain precise bath parameters, crucial for consistent quality in plastic plating. Furthermore, our designs incorporate efficient rinsing stages and waste minimization technologies to reduce water consumption and chemical waste, aligning with modern environmental standards.
Raymond Plastic Plating Equipment Production Lines are engineered for precision and adaptability, offering a wide range of configurations to meet the diverse demands of plating on plastics. Below are typical technical specifications, which can be fully customized to align with your specific production requirements and industry standards:
| Technical Parameter | Specification Range | Notes |
|---|---|---|
| Production Line Type | Fully Automatic Gantry, Semi-Automatic, Manual (Rack Plating, Barrel Plating) | Customizable based on automation level, part geometry, and production volume |
| Applicable Plastic Substrates | ABS, PC/ABS, Nylon, Polypropylene, PEEK, etc. | Designed for excellent adhesion on various engineering plastics |
| Plating Types | Electroless Copper, Electroless Nickel, Acid Copper, Bright Nickel, Micro-porous Nickel, Chrome (Decorative & Functional) | Multi-layer plating capabilities for enhanced performance and aesthetics |
| Tank Volume | Customizable from 500 Liters to 25,000 Liters+ | Designed to accommodate various production capacities and part sizes |
| Rectifier Capacity | 500A to 15,000A (adjustable based on current density requirements) | High-efficiency rectifiers with ripple control for optimal plating quality |
| Automation Level | PLC-controlled, HMI touch screen, real-time monitoring, data logging, SCADA integration | Minimizes human error, enhances process stability and traceability |

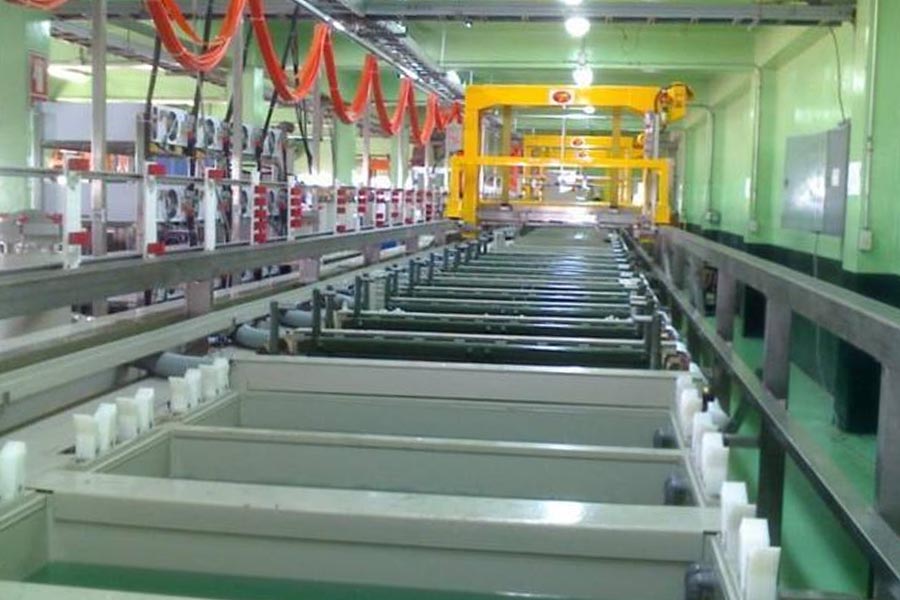

| Material Handling | Overhead hoists, robotic arms, conveyor systems, barrel rotators | Automated transfer and positioning of workpieces for rack and barrel plating |
| Environmental Controls | Integrated exhaust gas scrubbers, advanced wastewater treatment, chemical recovery systems, air filtration | Ensures compliance with stringent environmental regulations and reduces waste |
| Energy Efficiency | High-efficiency pumps, heaters, and rectifiers; intelligent power management | Reduces operational energy consumption and carbon footprint |
| Process Control | Automated chemical dosing, temperature control, pH monitoring, conductivity sensors | Ensures consistent bath chemistry and plating quality |
At Raymond, we specialize in delivering bespoke plastic plating solutions that perfectly align with your unique manufacturing requirements. Our dedicated team of experts provides end-to-end support, from initial consultation and detailed engineering design to precision equipment manufacturing, seamless installation, and comprehensive post-sales technical support. We ensure that every Raymond Plastic Plating Equipment Production Line is meticulously tailored to your specific production goals, facility layout, and long-term strategic objectives, providing a truly integrated and optimized solution for unparalleled performance.
The Raymond Plastic Plating Equipment Production Line is meticulously engineered to address and overcome the most critical challenges faced by manufacturers in the plastic finishing industry, transforming common pain points into significant competitive advantages:
Our advanced pre-treatment and activation processes ensure robust and long-lasting adhesion of metallic coatings to various plastic substrates, eliminating common issues like peeling and blistering.
With precise control over bath chemistry, temperature, and current density, our lines minimize plating defects such as pitting, roughness, and uneven thickness, guaranteeing a consistent, high-quality finish across all parts.
The applied metallic layers significantly improve the hardness, wear resistance, and scratch resistance of plastic components, extending their lifespan and maintaining their aesthetic appeal even in demanding applications.
Our lines enable the deposition of conductive metallic layers, offering excellent electromagnetic interference (EMI) and radio frequency interference (RFI) shielding for electronic components, crucial for modern devices.
Highly automated systems, reduced chemical consumption, and minimized waste generation lead to significant improvements in operational efficiency and a substantial reduction in overall production costs, enhancing profitability.
Our processes are designed to meet and exceed various industry standards for plated plastics, ensuring that your products comply with performance, safety, and environmental regulations, building trust and reliability.
Our clients consistently achieve remarkable results after implementing Raymond Plastic Plating Equipment Production Lines. A leading automotive interior supplier reported a **35% reduction in plating defects** and a **20% increase in production throughput** for their plated plastic trim components, directly attributing this to the precision and reliability of our lines. A major consumer electronics manufacturer achieved **superior EMI shielding performance** for their device casings, leading to enhanced product functionality and compliance with international standards. Furthermore, a sanitary ware producer noted a **significant improvement in the aesthetic consistency and durability** of their plated plastic faucets, resulting in higher customer satisfaction and market share. These successes underscore our commitment to delivering tangible value and fostering long-term partnerships through innovative and high-performance solutions.

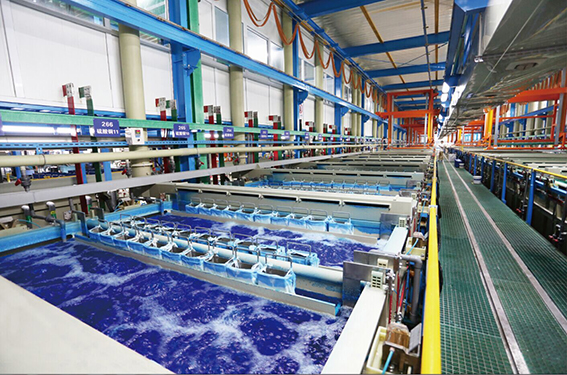

Plastic plating line (for automotive molded parts) is an efficient automated production line specially designed for plating processing of automotive molded parts. The production line integrates multiple links of plating pre-treatment, plating and post-treatment, and is capable of realizing automated processing of injection molded parts in the whole process from surface cleaning, activation to metal plating deposition and passivation protection.
Production line features:
1. High efficiency automation: Adopting advanced automation control technology to realize automation control of production process, reduce manual intervention and improve production efficiency.
2. Precise control: Through precise process parameter setting and real-time monitoring system, it ensures the quality and stability of the plating layer and meets the high standard requirements of automotive injection molded parts.
3. Environment protection and energy saving: Adopting environmentally friendly plating materials and processes to reduce the emission of hazardous substances, while optimizing the use of energy and reducing production costs.
4. Flexible configuration: The production line can be flexibly configured and adjusted according to the shapes, sizes and plating requirements of different injection molded parts to meet the needs of different customers.
| 1. Pre-treatment equipment: including the equipment required for oil removal, rust removal, activation and other processes to ensure that the surface of injection molded parts is clean and free of impurities. |
| 4. Automatic control system: including PLC controller, touch screen interface, etc., to realize automatic control and real-time monitoring of the production process. |
|

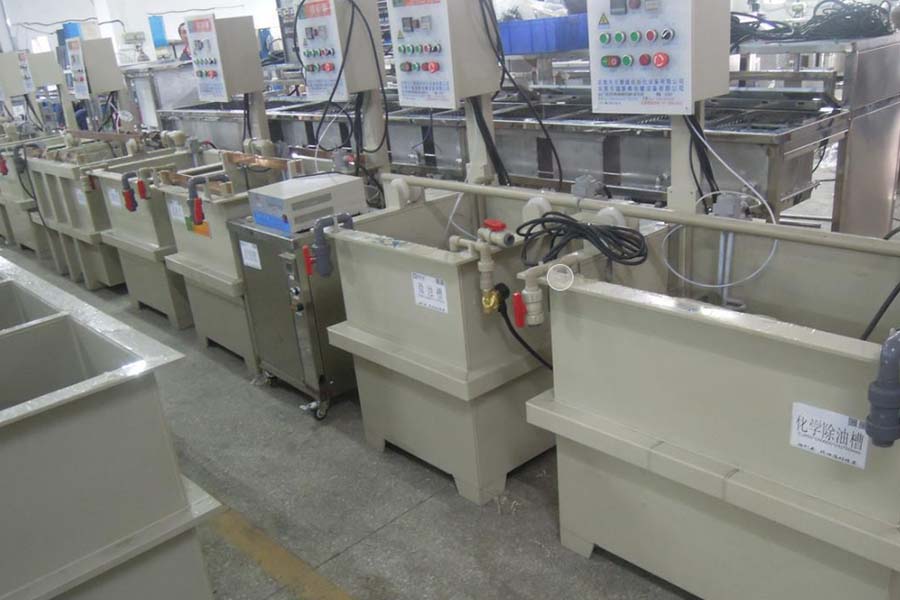

| 2. Plating tanks: used to store plating solution and perform plating process, multiple plating tanks can be configured as needed to meet the requirements of different plating processes. |
| 5. Post-treatment equipment: including the equipment required for passivation, cleaning, drying and other processes to ensure the quality and stability of the plating layer. |
|

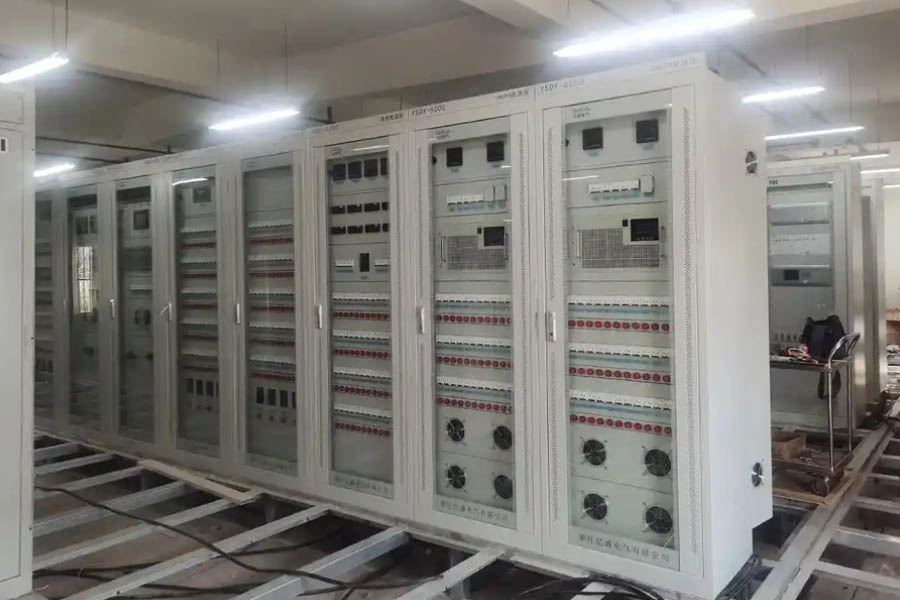

| 3. Electroplating Power Supply: Provide DC power supply required for electroplating to ensure the smooth progress of electroplating process. |
|
Innovative Solutions for Precision, Efficiency & Sustainabilit
Large scale production base
Lei Meng Equipment have a production base of 15000 square meters and multiple professional production lines including imported large processing centers,including equipment production lines for chrome plating, zinc plating, copper plating, nickel plating,silver plating, gold plating, plastic electroplating, hanging plating, rolling plating, push plating, spray coating, and pre-treatment.
Exquisite workmanship
Simple and flexible operation, stable operation,easy management,low mechanical failure rate, and high usage efficiency.The equipment adopts materials from well-known brands in Japan,Taiwan and China to ensure stable and durable quality.After on-site installation, the equipment is repeatedly tested to ensure stability and quality.
Master core technology
Engineers have been engaged in the electroplating industry for many years,continuously improving equipment quality and providing technical support.By increasing investment in technology and improving research and development capabilities, we now have advanced technology research and design capabilities in the industry
Lei Meng (Changzhou) Equipment Co. Ltd. is a large-scale equipment manufacturing enterprise.After more than ten years of rapid development, ithas two major production bases in Changzhou and Wuxi, as well as a technology research and development center with a total area of 15000 square meters. lt has multiple professional production lines, including imported large-scale machining centers.
