Electrolytic gold and silver equipment,Electrolytic gold and silver equipment manufacturer
Precious Metal Refining · Ultra-High Purity · Advanced Technology
The Raymond Electrolytic Gold and Silver Equipment represents a cutting-edge solution for the high-purity refining and recovery of gold and silver from various sources, including primary ores, secondary materials, and industrial waste. This advanced system leverages the principles of electrorefining, a highly efficient and environmentally responsible method, to produce gold and silver with purity levels often exceeding 99.99%. It is an indispensable tool for precious metal refineries, mints, jewelry manufacturers, and electronic waste recycling facilities that demand the highest quality and maximum recovery of these valuable metals.
At Raymond, we integrate global best practices and innovative technologies from leading manufacturers in Europe, USA, Japan, and Korea to deliver superior electrolytic gold and silver refining solutions. Our equipment is designed for optimal performance, reliability, and safety, featuring precise control over electrolyte composition, current density, and temperature. We focus on providing systems that not only achieve exceptional metal purity but also minimize operational costs, enhance environmental sustainability through efficient material recovery, and ensure compliance with stringent industry standards. Partner with Raymond for a robust and efficient electrolytic gold and silver solution that elevates your refining capabilities and maximizes the value of your precious metal assets.
The Raymond Electrolytic Gold and Silver Equipment employs a sophisticated electrorefining process to purify gold and silver.
Impure gold (doré gold, typically 95-99% pure) is cast into anodes and suspended in an electrolytic cell.
The cell contains an electrolyte of gold chloride (AuCl3) in hydrochloric acid (HCl). Pure gold starter sheets serve as cathodes.
When direct current is applied, gold from the anode dissolves into the electrolyte as Au3+ ions, which then deposit as pure gold onto the cathode. Base metals (e.g., copper, silver) also dissolve but remain in solution, while platinum group metals (PGMs) and silver fall to the bottom as anode sludge.
The electrolyte is continuously circulated and purified to maintain its composition and remove dissolved impurities.
High-purity gold cathodes are harvested, melted, and cast into bars.
Impure silver (doré silver, typically 95-98% pure) is cast into anodes and placed in canvas bags or suspended in electrolytic cells.
The cell contains an electrolyte of silver nitrate (AgNO3) and nitric acid (HNO3). Stainless steel or pure silver sheets serve as cathodes.
When direct current is applied, silver from the anode dissolves into the electrolyte as Ag+ ions, which then deposit as pure silver onto the cathode. Base metals dissolve and remain in solution, while gold and PGMs fall to the bottom as anode sludge.
The electrolyte is continuously circulated and purified to maintain its composition.
High-purity silver crystals or sheets are harvested from the cathodes, washed, dried, and melted into bars.
Raymond Electrolytic Gold and Silver Equipment is engineered for superior performance, reliability, and adaptability, incorporating advanced features inspired by global industry leaders.
| Technical Parameter | Specification Range |
|---|---|
| Equipment Type | Fully Automatic Gold & Silver Electrorefining System |
| Gold Purity (Cathode) | ≥ 99.995% |
| Silver Purity (Cathode) | ≥ 99.99% |
| Anode Material | Doré Gold (95-99% Au), Doré Silver (95-98% Ag) |
| Production Capacity | 1 kg/day to 500 kg/day (Gold), 10 kg/day to 2 tons/day (Silver) (customizable) |
| Electrolytic Cell Material | Polypropylene (PP), PVC, or Glass-lined Steel |
| Electrolyte Composition (Gold) | Gold Chloride (AuCl3) in Hydrochloric Acid (HCl) |
| Electrolyte Composition (Silver) | Silver Nitrate (AgNO3) in Nitric Acid (HNO3) |
| Current Density (Gold) | 100 - 200 A/m² |
| Current Density (Silver) | 200 - 400 A/m² |
| Voltage per Cell | 1.5 - 3.0 V |
| Temperature Control | Automatic Heating System (40-70°C) |
| Control System | Advanced PLC Control (Siemens, Mitsubishi), HMI Touchscreen, SCADA Integration, Data Logging, Remote Monitoring |
| Rectifiers | High-efficiency DC Rectifiers with precise current/voltage control |
| Impurity Separation | Integrated systems for anode sludge collection and electrolyte purification |
| Environmental Systems | Fume extraction, acid mist suppression, wastewater treatment, chemical recycling |
| Safety Features | Emergency stop, interlocks, leak detection, fire suppression, advanced ventilation, operator safety training |
| Automation Level | Fully Automated Anode/Cathode Handling, Electrolyte Management, and Process Control |
The Raymond Electrolytic Gold and Silver Equipment is designed to effectively address critical challenges faced by precious metal refiners and recyclers.
Our Solution: Our precise control over the electrolytic process, combined with advanced cell design and electrolyte purification, consistently yields gold and silver with purity levels exceeding 99.99%, meeting the stringent requirements for investment-grade metals and high-tech applications.
Our Solution: The electrolytic refining process ensures maximum recovery of gold and silver from various raw materials, minimizing losses and significantly enhancing overall profitability.
Our Solution: Our system significantly reduces the reliance on hazardous chemicals and incorporates advanced environmental control features, including fume extraction and wastewater treatment, promoting a safer and more sustainable refining operation.
Our Solution: Our energy-efficient rectifiers and optimized cell configurations minimize power consumption, while automated systems reduce labor and chemical costs, leading to significant overall operational savings.
Our Solution: Fully automated anode/cathode handling and process control systems reduce reliance on manual labor, minimizing human error and significantly improving workplace safety.
Our Solution: Real-time monitoring and precise control of all critical parameters through advanced PLC/HMI systems ensure consistent product quality and stable, reliable operation, reducing downtime and rework.

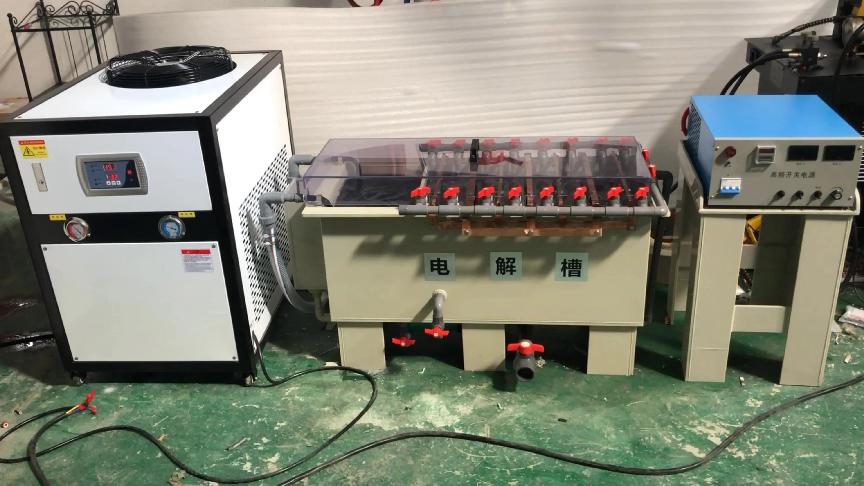

Electrolytic gold and silver equipment is specialized equipment for extracting or refining gold and silver by the electrolytic process. Such equipment usually includes key components such as electrolyzer, electrolytic power supply, electrolyte circulation system, electrolytic product collection system, etc., and is equipped with appropriate control systems to ensure the stability of the electrolytic process.
I. Working Principle of Gold and Silver Electrolysis Equipment
Electrolysis gold and silver equipment uses the principle of electrolysis, under the action of direct current, the gold and silver ions in the electrolyte are reduced to metal monomers on the cathode and deposited on the cathode plate to realize the extraction or refining of gold and silver. In the electrolytic process, the anode is usually made of gold and silver alloy or scrap to be processed, while the cathode is a pure metal plate or a material with good electrical conductivity.
II, the main types of gold and silver electrolytic equipment
1. Silver electrolytic equipment: equipment specially designed to extract silver from silver-containing waste liquids. This equipment usually has high electrolysis efficiency and good silver recovery rate, and can process all kinds of silver-containing waste liquid, such as photographic waste liquid, electroplating waste liquid and so on.
2. Gold electrolysis equipment: equipment for extracting or refining gold from gold-containing materials. This equipment usually has higher technical requirements and more complex control systems to ensure the extraction efficiency and purity of gold.
III. Advantages of Gold and Silver Electrolytic Equipment
1. High efficiency: the electrolytic process can efficiently extract or refine gold and silver and improve the utilization rate of resources.
2. Environmental protection: The waste liquid and waste gas produced in the electrolysis process are relatively small and easy to handle, which meets the requirements of environmental protection.
3. Flexibility: gold and silver electrolytic equipment can process a variety of gold and silver containing materials, with wide application.
